Page 6 - MC

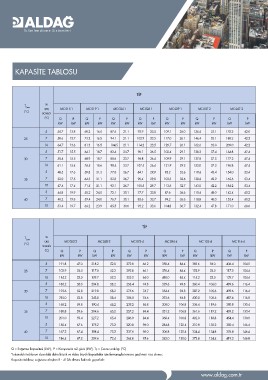

KAPASİTE TABLOSU

TİP

TÇevre SU MC 015-1 MC 019-1 MC 024-1 MC 026-1 MC 029-1 MC 037-2 MC 047-2
(°C) ÇIKIŞ
SICAKLIĞI

(°C) Q P Q P Q P Q P Q PQ PQ P

kW kW kW kW kW kW kW kW kW kW kW kW kW kW

5 54.7 13.8 68.2 16.6 87.6 21.1 95.9 23.5 109.1 26.0 136.4 33.1 175.2 42.0

25 7 58.6 13.7 73.2 16.5 94.1 21.1 102.9 23.5 117.0 26.1 146.4 33.1 188.2 42.2

10 64.7 13.6 81.3 16.5 104.5 21.1 114.2 23.5 129.7 26.1 162.6 33.0 209.0 42.2

5 51.7 15.5 64.1 18.7 82.4 23.7 90.1 26.5 102.4 29.1 128.2 37.4 164.8 47.4

30 7 55.4 15.5 68.9 18.7 88.6 23.7 96.8 26.4 109.9 29.1 137.8 37.3 177.2 47.4

10 61.1 15.4 76.5 18.6 98.4 23.7 107.5 26.4 121.9 29.2 153.0 37.3 196.8 47.4

5 48.5 17.6 59.8 21.2 77.0 26.7 84.1 29.9 95.2 32.6 119.6 42.4 154.0 53.4

35 7 52.0 17.5 64.3 21.1 82.8 26.7 90.4 29.8 102.3 32.6 128.6 42.2 165.6 53.4

10 57.4 17.4 71.5 21.1 92.1 26.7 100.5 29.7 113.6 32.7 143.0 42.2 184.2 53.4

5 44.8 19.9 55.2 24.0 72.1 30.1 77.7 33.8 87.6 36.6 110.4 48.0 142.4 60.2

40 7 48.2 19.8 59.4 24.0 76.7 30.1 83.6 33.7 94.2 36.6 118.8 48.0 153.4 60.2

10 53.4 19.7 66.2 23.9 85.5 30.0 93.2 33.6 104.8 36.7 132.4 47.8 171.0 60.0

TİP

TÇevre SU MC 052-2 MC 058-2 MC 073-4 MC 094-4 MC 103-4 MC 116-4
(°C) ÇIKIŞ
SICAKLIĞI QP QP QP
(°C) kW kW kW kW kW kW Q PQ P Q P
kW kW kW kW kW kW

5 191.8 47.0 218.2 52.0 272.8 66.2 350.4 84.4 383.6 94.0 436.4 104.0
376.4 84.4 102.9 23.5 117.0 104.4
25 7 102.9 23.5 117.0 52.2 292.8 66.1 418.0 84.4 114.2 23.5 129.7 104.4
329.6 94.8 360.4 106.0 409.6 116.4
10 114.2 23.5 129.7 52.2 325.2 66.0 354.4 94.8 387.2 105.6 439.6 116.4
393.6 94.8 430.0 105.6 487.6 116.8
5 180.2 53.0 204.8 58.2 256.4 74.8 308.0 106.8 336.4 119.6 380.8 130.4
331.2 106.8 361.6 119.2 409.2 130.4
30 7 193.6 52.8 219.8 58.2 275.6 74.7 368.4 106.8 402.0 118.8 454.4 130.8
284.8 120.4 310.8 135.2 350.4 146.4
10 215.0 52.8 243.8 58.4 306.0 74.6 306.8 120.4 334.4 134.8 376.8 146.4
342.0 120.0 372.8 134.4 419.2 146.8
5 168.2 59.8 190.4 65.2 239.2 84.8

35 7 180.8 59.6 204.6 65.2 257.2 84.4

10 201.0 59.4 227.2 65.4 286.0 84.4

5 155.4 67.6 175.2 73.2 220.8 96.0

40 7 167.2 67.4 188.4 73.2 237.6 96.0

10 186.4 67.2 209.6 73.4 264.8 95.6

Q = Soğutma kapasitesi (kW), P = Kompresör mil gücü (kW), Tç = Çevre sıcaklığı (°C)
Yukarıdaki tablonun dışındaki daha küçük ve daha büyük kapasiteler için firmamızla temasa geçilmesi rica olunur.
Kapasite tablosu; soğutucu akışkan R - 410A olması halinde geçerlidir.
