ALDA (AIR HEATING COIL UNITS) Product Catalogue

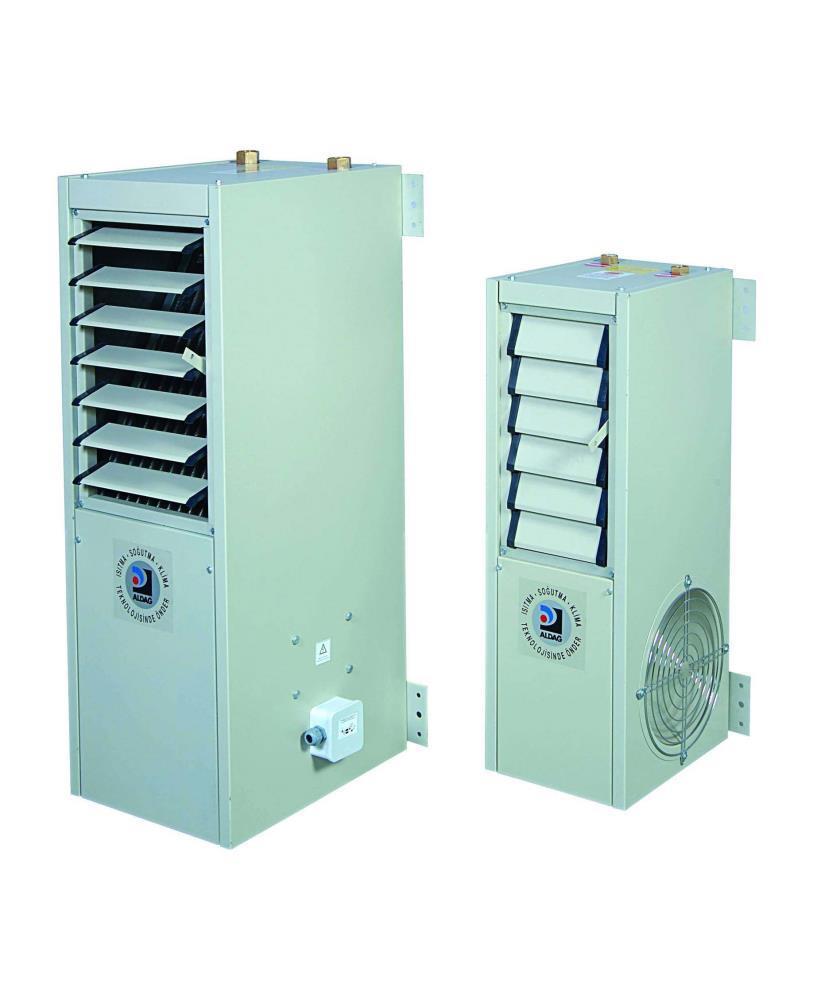

ALDA, radial type unit heaters are used to heat big volumes like factories, workshops, hangars, garages, storage areas, gymnasiums, etc.

Asstandard, units are manufactured between 6.900 to 42.600 kcal/h capacity at 90 / 70 °C hot water conditions.

As an option, ALDA radial type unit heaters can be manufactured to be compatible with superheated water and steam.

It is more suitable to prefer ALDA radial type unit heaters in enclosed areas with ceiling height exceeding 4 m.

1. CASING
ALDA radial type unit heaters are composed of the combination of specially designed panels from electrostatic powder painted galvanized sheet metal.

2. CENTRIFUGALFAN-MOTOR GROUP
ALDA radial type unit heaters include direct driven backward curved centrifugal fan groups. The quiet and secure fan is powered from the 230 V 50 Hz line. With this fan group, 40% energy savings are provided.

3. HEATING COIL
Copper tube aluminum fin heating coils are used in ALDA radial type unit heaters. With these high efficiency coils, the desired heat transfer can be easily achieved. For steam and superheated water options (0.5 Atu - 6 Atu), steel tube, steel finned electro galvanized coated heating coils can also be used.

4. AIR ADJUSTMENT WINGS
Adjustablewings for directing the air stream to the desired side.

5. HEATING MEDIA INLET-OULETCONECTIONS
As standard, bolted joint connections are used for pipe connections. Steam flanged connection is used for steam systems.

6. FRESH AIR MIXING BOX
In case of fresh air need for ALDA radial unit heaters, heating is made by providing the desired proportion of mixed air with fresh air mixing box.

KAPASİTE TABLOSU

TİP	Hava Debisi	Motor Gücü Watt	Çekilen Akım	18°C hava giris sıcaklıgı,90/70°C Sıcak su rejimine göre
TİP	m3/h	230V 50 Hz	I(A)	Kcal/h	Üfleme°C	Basınç Kaybı kPa	Cihaz Agırlıgı(kg)	Gürültü Seviyesi(dBA)
ALDA 6	1350	78	0.35	6900	36	5.5	23	60
ALDA 10	1500	78	0.30	10000	41	8	25	60
ALDA 12	1500	78	0.30	14000	50	8.5	27	60
ALDA 16	2700	170	0.70	17000	40	6.5	35	63
ALDA 20	2800	170	0.70	19900	42	7.3	36	63
ALDA 24	3300	270	1.1	24050	43	7	46	63
ALDA 32	3500	270	1.1	33500	50	8.8	48	63
ALDA 40	3800	270	1.1	42600	56	15	50	63

BOYUT TABLOSU (mm)

TİP	A	B	C	E	F	G1	G2	H	K	L	M	N	P	Su	Buhar
TİP	A	B	C	E	F	G1	G2	H	K	L	M	N	P	ød	DN	ød
ALDA 6	290	900	395	175	60	75	95	35	105	715	430	280	60	1/2"	25	1/2"
ALDA 10	290	900	395	175	60	75	95	35	105	715	430	280	60	1/2"	25	1/2"
ALDA 12	290	900	395	175	60	75	95	35	105	715	430	280	60	1/2"	25	1/2"
ALDA 16	375	1100	500	277	60	60	80	35	105	900	530	530	75	3/4"	32	3/4"
ALDA 20	375	1100	500	277	60	60	80	35	105	900	530	530	75	3/4"	32	3/4"
ALDA 24	400	1300	550	277	75	75	105	35	105	1110	560	360	90	1"	40	1"
ALDA 32	400	1300	550	250	75	75	105	35	105	1110	560	360	90	1"	40	1"
ALDA 40	400	1300	550	250	70	70	105	35	105	1110	560	360	90	1/4"	40	1/4"
