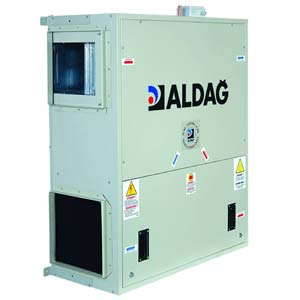

AHRV (HEAT RECOVERY UNIT) Product Catalogue
In order to improve the air quality at the air-conditioned areas, clean fresh air is very important.

Usually, instead of exhaust air, fresh air is taken directly from the outdoor environment and additionally conditioned to keep the temperature of the ambient air stable.

Thanks to the air to air heat recovery exchanger installed in the AHRV units, there exists a heat transfer between the fresh air and exhaust air without any contact by crossflow method. By this way, using a %70 efficient heat recovery exchanger, approximately %30 energy efficiency is achieved.

So, Aldağ Heat Recovery Units are manufactured to supply the fresh air requirements with energy efficiency.

These units are generally preferred to supply the fresh air requirements of offices, residences, malls etc.

AHRV units are designed to be installed to the regular ceiling height with an ease of installation & maintenance.

• 500 to 5.000 m3/h air volume flow with 8 different types.
• Strong& durableelectrostatic powder painted body
• Quiet and safe running, 3-speed, direct driven centrifugal fresh air and exhaust fans
• Easily washable and replaceable filter
• 55% to 70% efficient air to air heat recovery exchanger
• 3 speed control panel
• Optional duct type electrical heater, power panel and digital control panel
• Ease of maintenance, service and installation
Read more

TİP   500 750 1000 1500 2000 3000 4000 5000
Hava Debisi m3/h (500) 750 1000 1500 2000 3000 4000 5000
Motor Gücü 230V 50Hz Watt 2 x 150 2 x 150 2 x 150 2 x 375 2 x 375 2 x 450 2 x 550 2 x 550
Fan Tipi 3 Hızlı   701 701 701 971 971 991 1001 1002
Çekilen Akım 230V 50 Hz A 1.95 2,0 2,5 5.0 6.0 7.0 8,0 16,0
Cihaz Dısı Basınç Kaybı Pa 200 150 100 200 160 200 200 200
Ses Basınç Seviyesi (1m.) dBA 48 48 48 53 53 55 55 57
Boyutlar(mm) L 850 850 1000 1200 1200 1600 1600 1800
W 760 760 860 965 965 1165 1165 1500
H 360 360 400 420 420 500 500 500
a/b 230 / 200 230 / 200 280 / 280 330 / 330 330 / 330 400 / 400 400 / 400 550/400**
x/y 100 / 30 100 / 30 100 / 30 70 / 30 70 / 30 120 / 30 120 / 30 100 / 40
Agırlık Kg 53 53 61 85 85 155 165 190
* Elektrikli Isıtma Serpantini (kW) kW 2 2 3 5 6 10 12 18
